Rack + Lift
External magazine allowing heavy material to be loaded using an IEMCA trolley, forklift or crane.
Capacity
790 mm
IEMCA / Dlouhé tyče
Maestro 100
Flexible large-diameter bar feeder for lathes with a fixed headstock
Available versions
3200 mm
Description
Why Maestro 100 is suitable for your operation
Maestro 100 is an automatic bar feeder for CNC lathes with a fixed headstock, designed for bars with diameters from 10 to 100 mm and lengths from 1500 to 4200 mm.
It is designed for demanding applications where high performance and maximum flexibility are essential. It allows feeding to be efficiently adapted to different production requirements and maximizes productivity while maintaining simple and comfortable operation.
It combines high productivity, flexibility and ergonomics with a modern design. The focus is on convenient material handling and intuitive controls that simplify everyday operation and production-program changes.
It is a comprehensive solution for manufacturers requiring high performance, broad application possibilities and maximum flexibility when machining large-diameter bars.
Technical data
Detailed specifications
Parameter
Value
Material length
1500–4200 mm
Headstock type
Fixed headstock
Round bar diameter
10–100 mm
Hex bar diameter
10–86 mm
Square bar diameter
10–70 mm
Bar changeover time
31 s
Max. bar weight
180 kg
Remnant length
Version 3200: 110–400 mm
Weight
Version 3200: 1880 kg
Version 3700: 1950 kg
Version 4200: 2050 kg
Feed rate
500 mm/s
Return speed
1000 mm/s
Installed power
3 kW
Power supply
230/400 V
Air pressure
6 bar
Spindle count
1
External magazines
Open Access Bundle
External magazine allowing an entire bundle of material to be loaded using an IEMCA trolley, forklift or crane.
Capacity
2500 kg

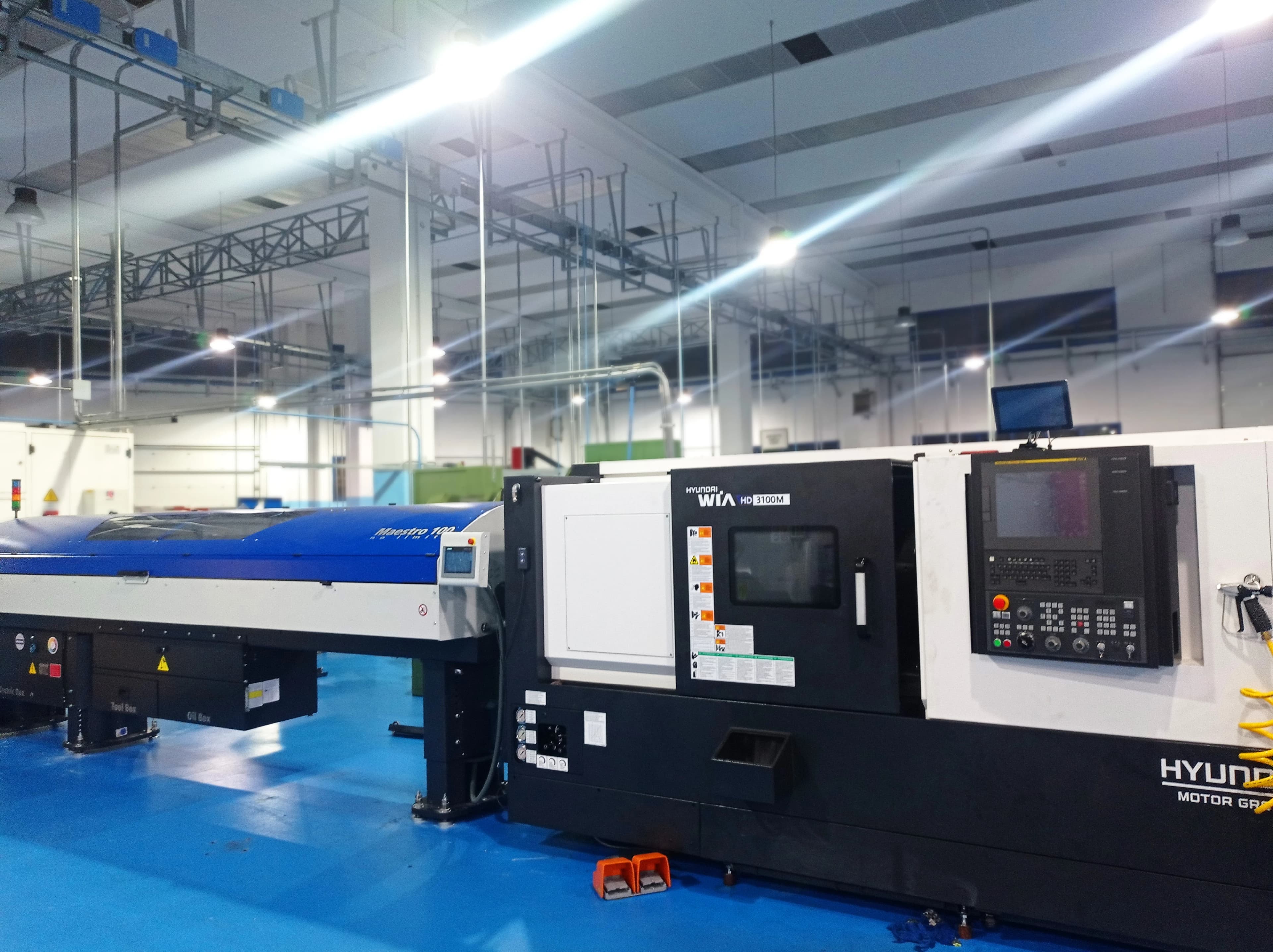

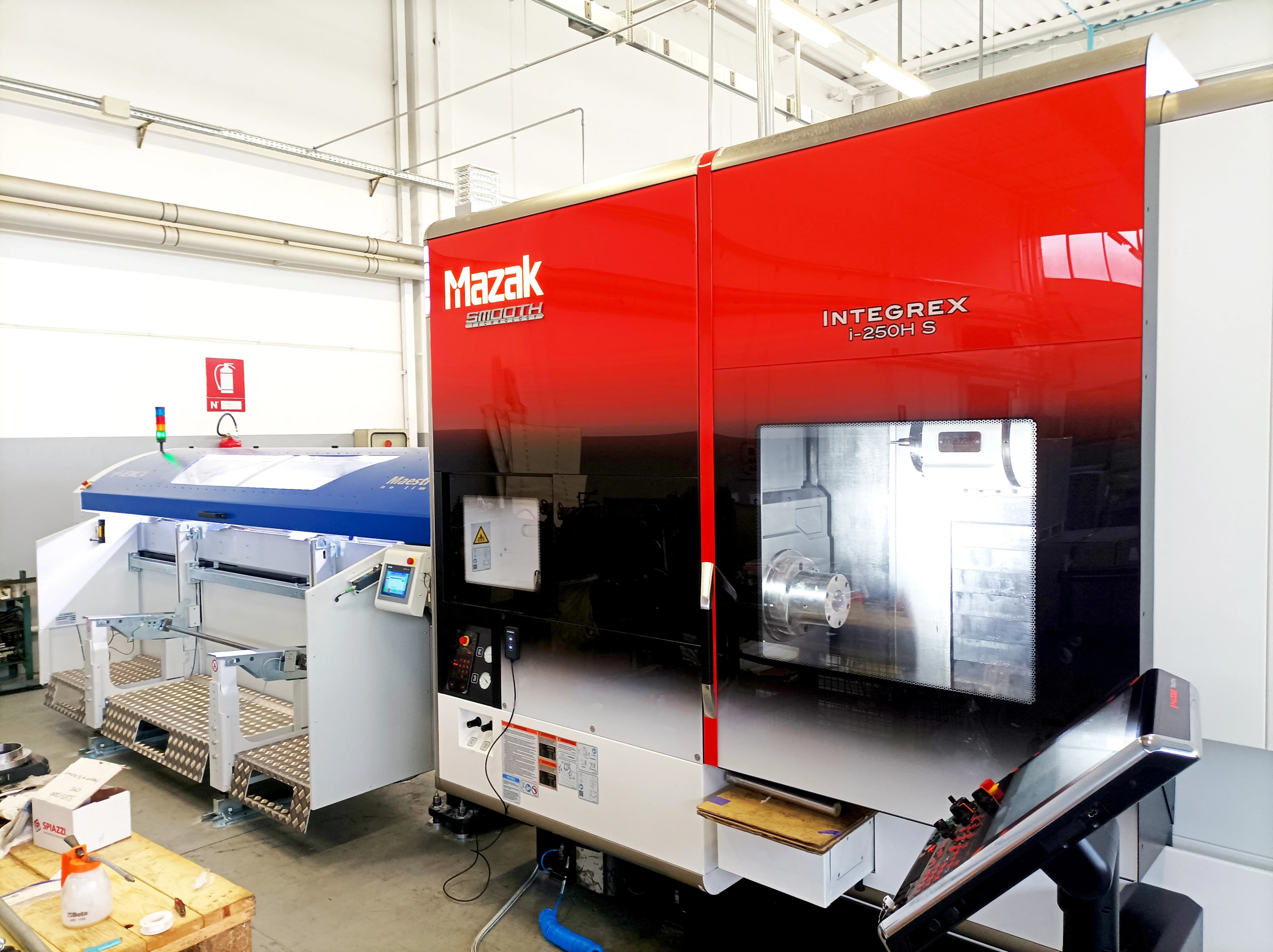

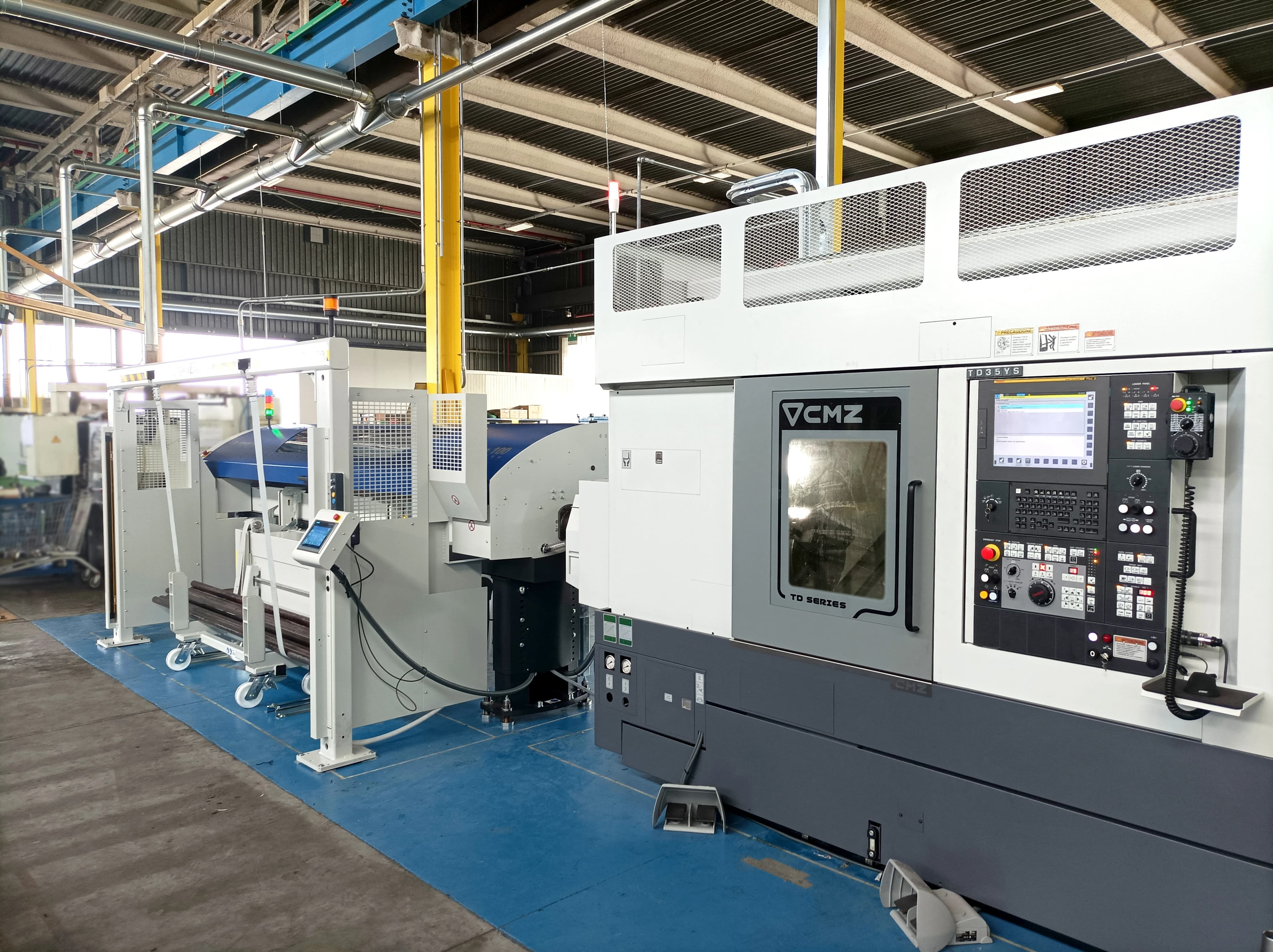

Installation examples
Other models in the Maestro family
Frequently asked questions
Answers to the questions our customers ask most often.
Why choose IEMCA bar feeders over competing products?
The highest precision, the best vibration damping, the fastest bar-change cycle during material feeding, many years of experience and fair customer support make IEMCA bar feeders the best choice on the market.
How long does delivery of IEMCA bar feeders take?
The standard delivery time is around 4–8 weeks from order confirmation. Production may take longer depending on the workload of the production line for the given model; we will confirm the exact date by email.
What is the warranty on IEMCA bar feeders?
The standard warranty is 12 months, with the option to purchase an extended warranty for 18 or 24 months.
Do you offer bar feeders for all types of CNC lathes?
Yes, IEMCA bar feeders can be installed on all CNC lathes requiring automated bar feeding. The lathe control system does not matter.
Do you provide service for IEMCA bar feeders after the warranty period?
Yes. In addition to equipment installation, training and spare parts supply, our service team also provides comprehensive post-warranty service.
Does IEMCA offer high-pressure coolant systems?
Yes. IEMCA offers 2 high-pressure coolant models – Blue Line 100 and Clear Line 50. Both models can be integrated with an IEMCA bar feeder or supplied in the standalone SOLO version, which does not require an IEMCA bar feeder.
How do I choose the right IEMCA bar feeder for my CNC lathe?
You can use the configurator on this page to find the right IEMCA bar feeder model for your CNC lathe. You can also contact us by phone or email and we will be happy to advise you on the selection.
Can an IEMCA bar feeder be connected to my existing CNC lathe?
Yes, provided your CNC lathe is prepared for a bar feeder. If it is not, you will need to contact your CNC lathe supplier to find out whether the lathe can be prepared for a bar feeder.
Do you provide transport, installation, commissioning of the bar feeder and training?
Yes, transport, installation, commissioning of the bar feeder and subsequent training are included in the product price.
What bar diameters and lengths can IEMCA bar feeders handle?
IEMCA bar feeders can feed bars from 0.3 mm up to 100 mm in diameter and from 90 mm up to 6380 mm in length.
