Boss 552
High-performance bar feeder for lathes with fixed and sliding headstocks
Available versions
2100 mm3200 mm3700 mm4400 mm6400 mm
Description
Why Boss 552 is suitable for your operation
Boss 552 HD builds on more than 20 years of development of the Boss range, with more than 50,000 installed units worldwide. Continuous design improvements and attention to every detail have allowed the range to maintain a high standard of quality across a wide range of machining applications.
It is an automatic bar feeder for CNC lathes with fixed and sliding headstocks, designed for bars with diameters from 5 to 51 mm and lengths from 700 to 6380 mm.
Its robust construction ensures high stability and reliability in everyday operation. The feeder is designed for demanding applications where precise, smooth material feeding and long-term stable performance are important.
Thanks to its robust construction, years of development and focus on reliability, it is a practical solution for a wide range of machining applications.
Technical data
Detailed specifications
Parameter
Value
Material length
700–6380 mm
Headstock type
Sliding and fixed headstock
Round bar diameter
5–51 mm
Hex bar diameter
5–43 mm
Square bar diameter
5–36 mm
Bar changeover time
19 s
Max. bar weight
55 kg
Remnant length
Version 2100: 70–295 mm
Version 3200: 70–400 mm
Version 3700: 70–400 mm
Version 4400: 70–400 mm
Version 6400: 70–400 mm
Weight
Version 2100: 650 kg
Version 3200: 885 kg
Version 3700: 950 kg
Version 4400: 1030 kg
Feed rate
750 mm/s
Return speed
1200 mm/s
Installed power
2 kW
Power supply
230/400 V
Air pressure
8 bar
Spindle count
1
IEMCA / HIGH-PRESSURE COOLANT UNIT
High-pressure coolant unitfor CNC lathes
Perfect integration with IEMCA bar feeders
System benefits
- Large tank ensuring the coolant remains at the correct temperature
- Highly configurable system tailored to your operation
- Large filter area extends operating time without frequent cleaning
- Sensors monitoring filter contamination status
- Smart dimensions and the option to place the unit under the bar feeder save space in the workshop
External magazines
Bundle
External magazine allowing an entire bundle of material to be loaded by forklift or crane.
Capacity
2000 kg
Open Access Bundle
External magazine allowing an entire bundle of material to be loaded using an IEMCA trolley, forklift or crane.
Capacity
2500 kg

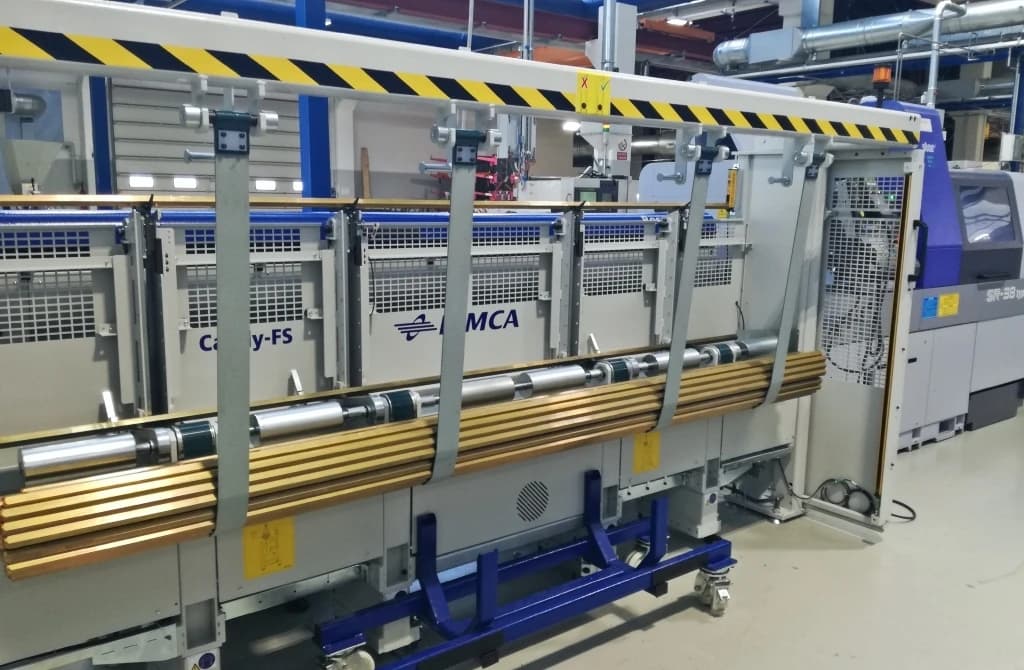

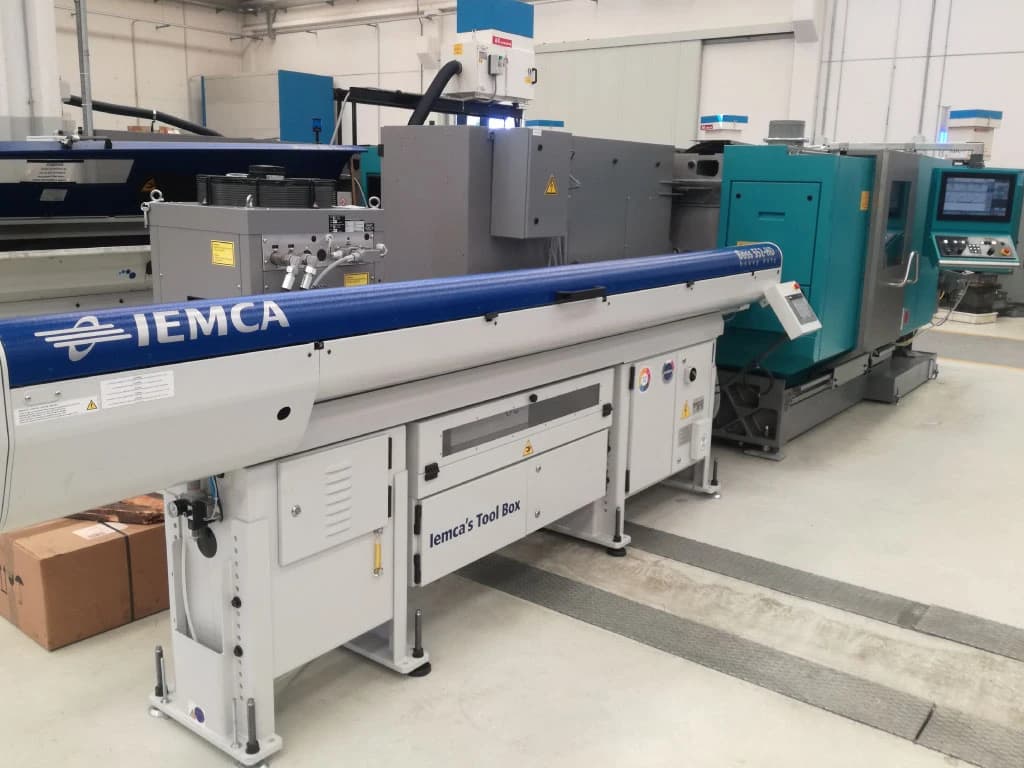

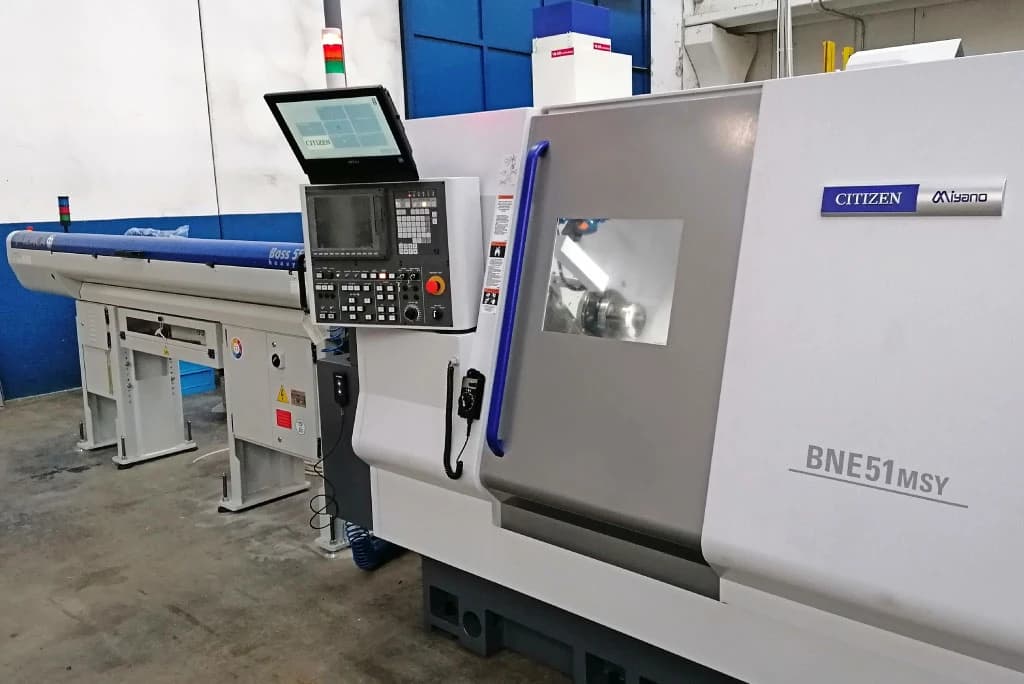

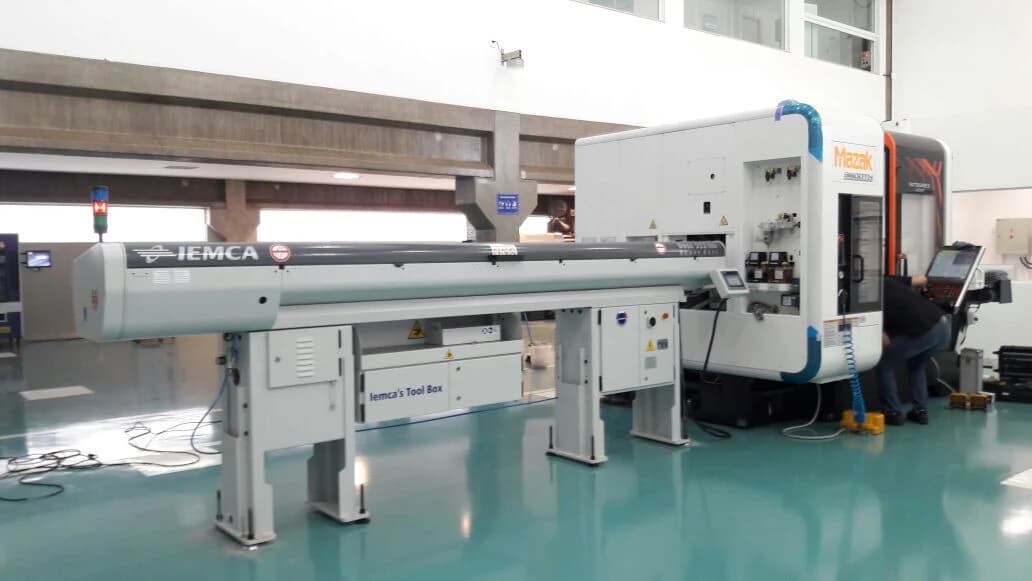

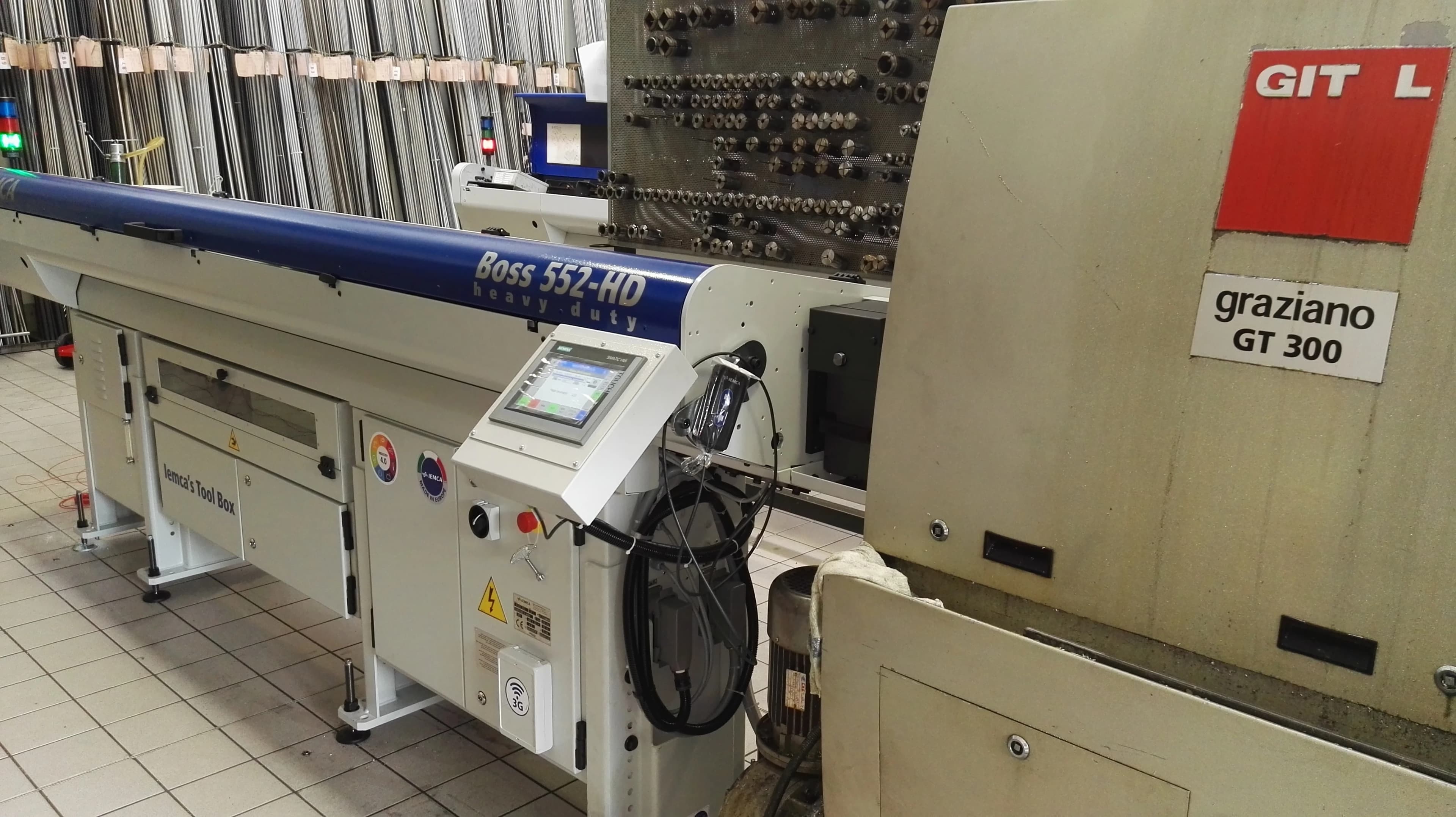

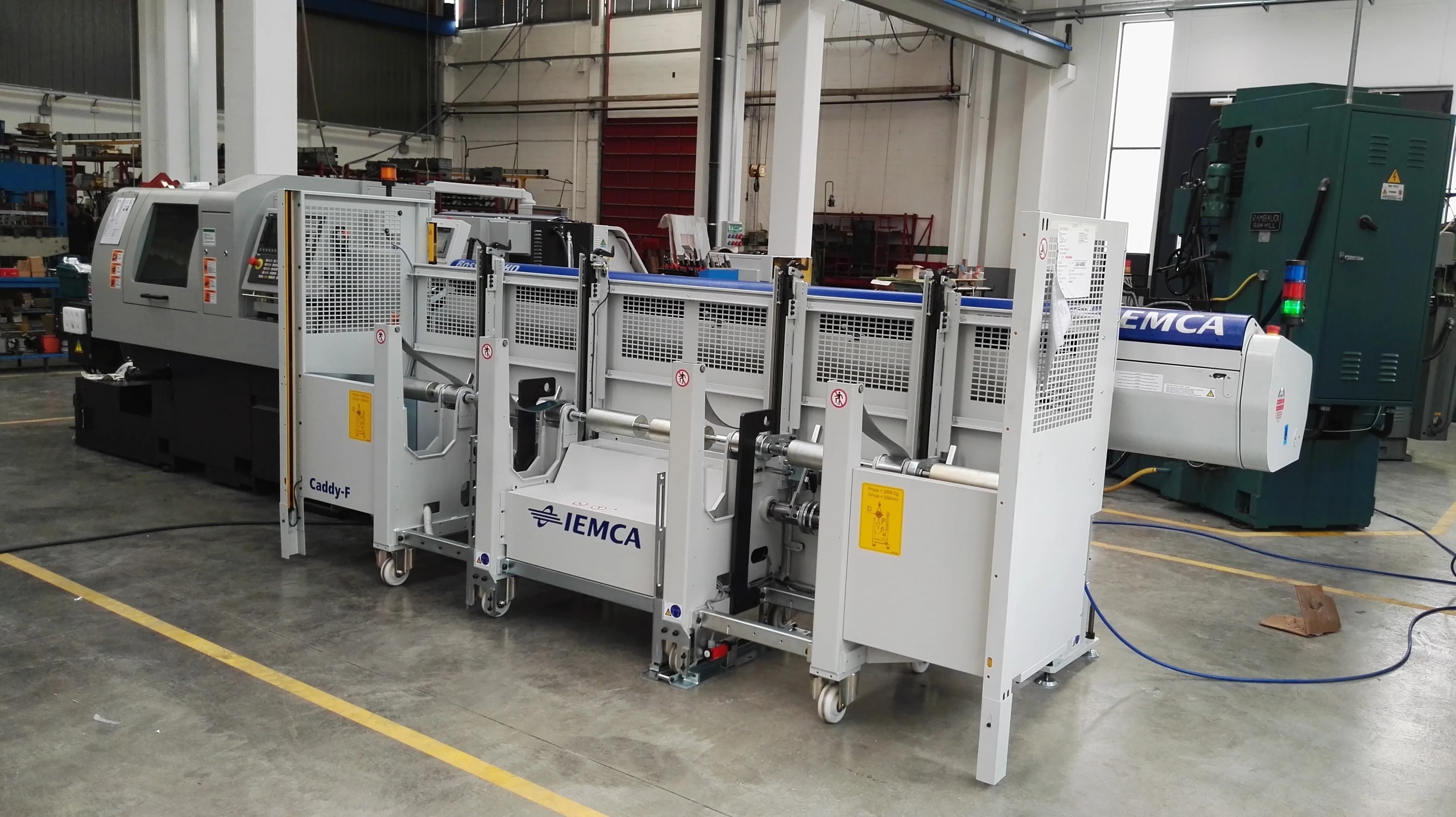

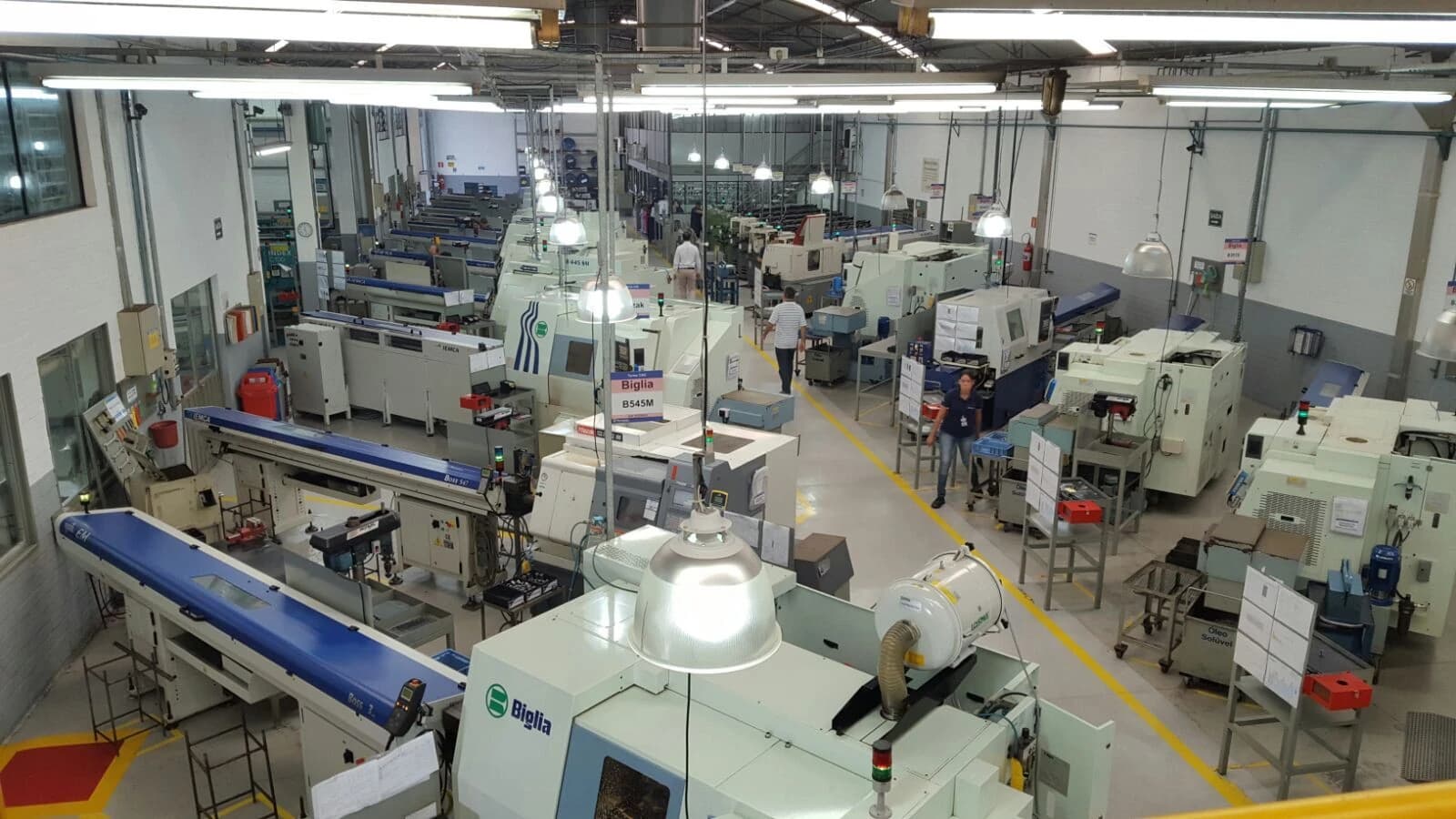

Installation examples
Other models in the Boss family
Frequently asked questions
Answers to the questions our customers ask most often.
Why choose IEMCA bar feeders over competing products?
The highest precision, the best vibration damping, the fastest bar-change cycle during material feeding, many years of experience and fair customer support make IEMCA bar feeders the best choice on the market.
How long does delivery of IEMCA bar feeders take?
The standard delivery time is around 4–8 weeks from order confirmation. Production may take longer depending on the workload of the production line for the given model; we will confirm the exact date by email.
What is the warranty on IEMCA bar feeders?
The standard warranty is 12 months, with the option to purchase an extended warranty for 18 or 24 months.
Do you offer bar feeders for all types of CNC lathes?
Yes, IEMCA bar feeders can be installed on all CNC lathes requiring automated bar feeding. The lathe control system does not matter.
Do you provide service for IEMCA bar feeders after the warranty period?
Yes. In addition to equipment installation, training and spare parts supply, our service team also provides comprehensive post-warranty service.
Does IEMCA offer high-pressure coolant systems?
Yes. IEMCA offers 2 high-pressure coolant models – Blue Line 100 and Clear Line 50. Both models can be integrated with an IEMCA bar feeder or supplied in the standalone SOLO version, which does not require an IEMCA bar feeder.
How do I choose the right IEMCA bar feeder for my CNC lathe?
You can use the configurator on this page to find the right IEMCA bar feeder model for your CNC lathe. You can also contact us by phone or email and we will be happy to advise you on the selection.
Can an IEMCA bar feeder be connected to my existing CNC lathe?
Yes, provided your CNC lathe is prepared for a bar feeder. If it is not, you will need to contact your CNC lathe supplier to find out whether the lathe can be prepared for a bar feeder.
Do you provide transport, installation, commissioning of the bar feeder and training?
Yes, transport, installation, commissioning of the bar feeder and subsequent training are included in the product price.
What bar diameters and lengths can IEMCA bar feeders handle?
IEMCA bar feeders can feed bars from 0.3 mm up to 100 mm in diameter and from 90 mm up to 6380 mm in length.
